Continuing the Bot Building Process

So we'll continue from where we left on last a little while ago with our bot building blog posts. We'd got to the MK IV if memory serves... next on the list of things to do is to make our bot interface page nice and pretty.

Enter, CSS

Because we're using a very simple webserver on the Raspberyy Pi Pico W and because the code handily returned from our generateHTML() function is effectively the page that's served by the websever; we know this is a pretty good place to add a little customisation for our robot - make our page a little ... prettier :).

CodePen

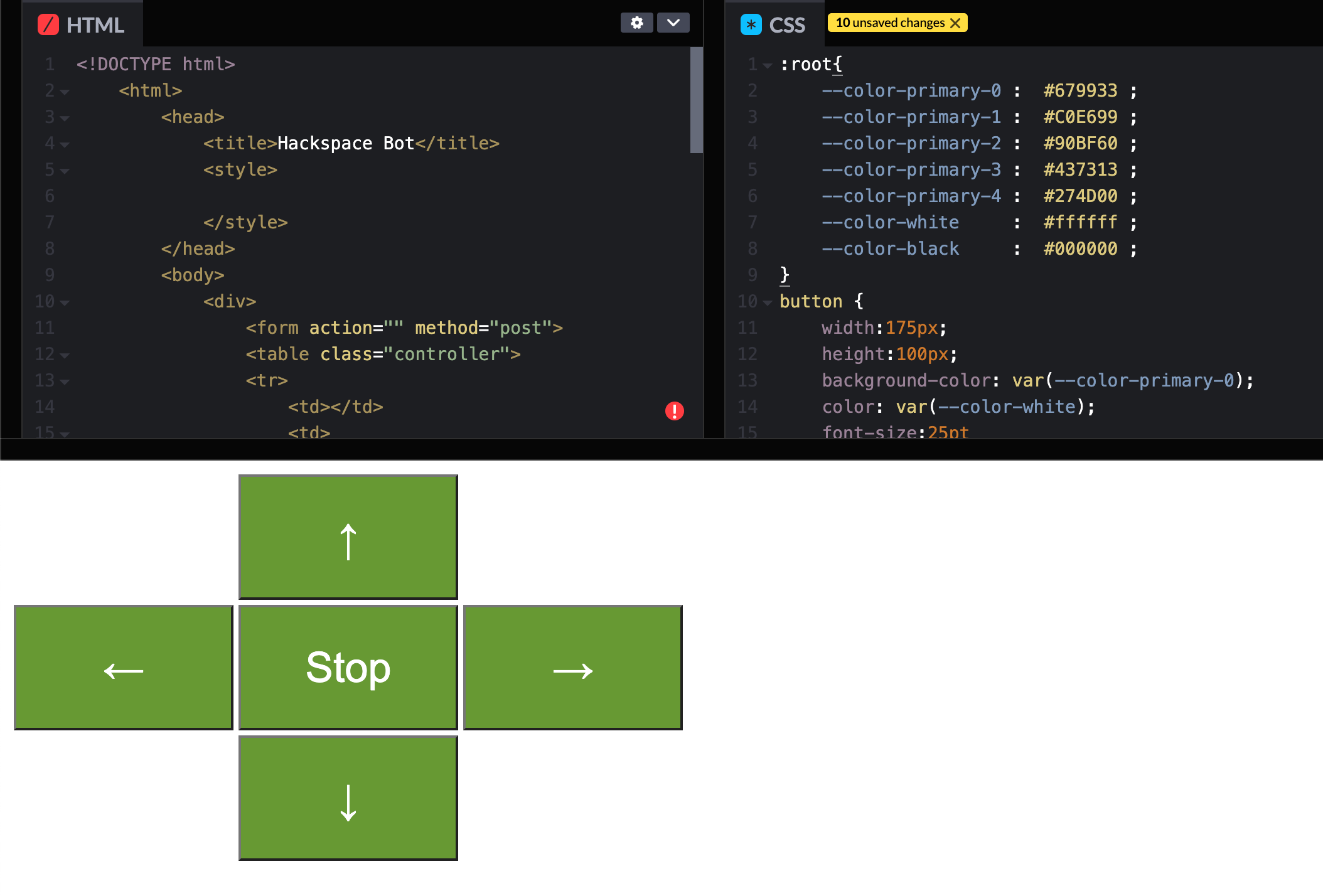

when prototyping it's always much more satisfying to see the changes happen quickly as opposed to editing our generateHTML() function, uploading to the bot, connecting to our bot, visiting the url... it's a lot of steps - to to make this a bit easier we're going to use a nice tool called CodePen, our first step is to rip out the HTML from the generateHTML() function and paste it into the HTML window like so:

We've made a couple of modifications from our original generateHTML() function to make it easier to work with CSS:

html = f"""
    <!--Snip-->
    <style>{style}</style>
    <!--Snip-->"""
return html

The above code is snipped for brevity but what it does is uses python's format string fucntionality to add the variable style with the the style we read into the variable (more on that a little later).

We've also moved generateHTML() into it's own file and use parameters to drop in from the main program, we import the function into main.py by adding the following code to the top of our main.py:

from html import generateHTML

This allows us to call generateHTML() like we did previously, it's just tidied away in its own file now :)... We've also added the following code to the beginning of the function - which will allow us to use an exteral style sheet (see I told you more on that later):

style = ""
with open("./style.css","r") as f:
    style = f.read()

Now, once we're done with making the code look pretty in CodePen we can just drop the code from the CSS window into the style.css file and it will make the controller page all nice and pretty too! Great Stuff!

Paletton

A good place to grab some colours that go well together is Paletton, For the purposes of this guide however we're only going to pick a primary colour but don't let that stop you from adding a little extra flare, pick a colour you like the look of like so:

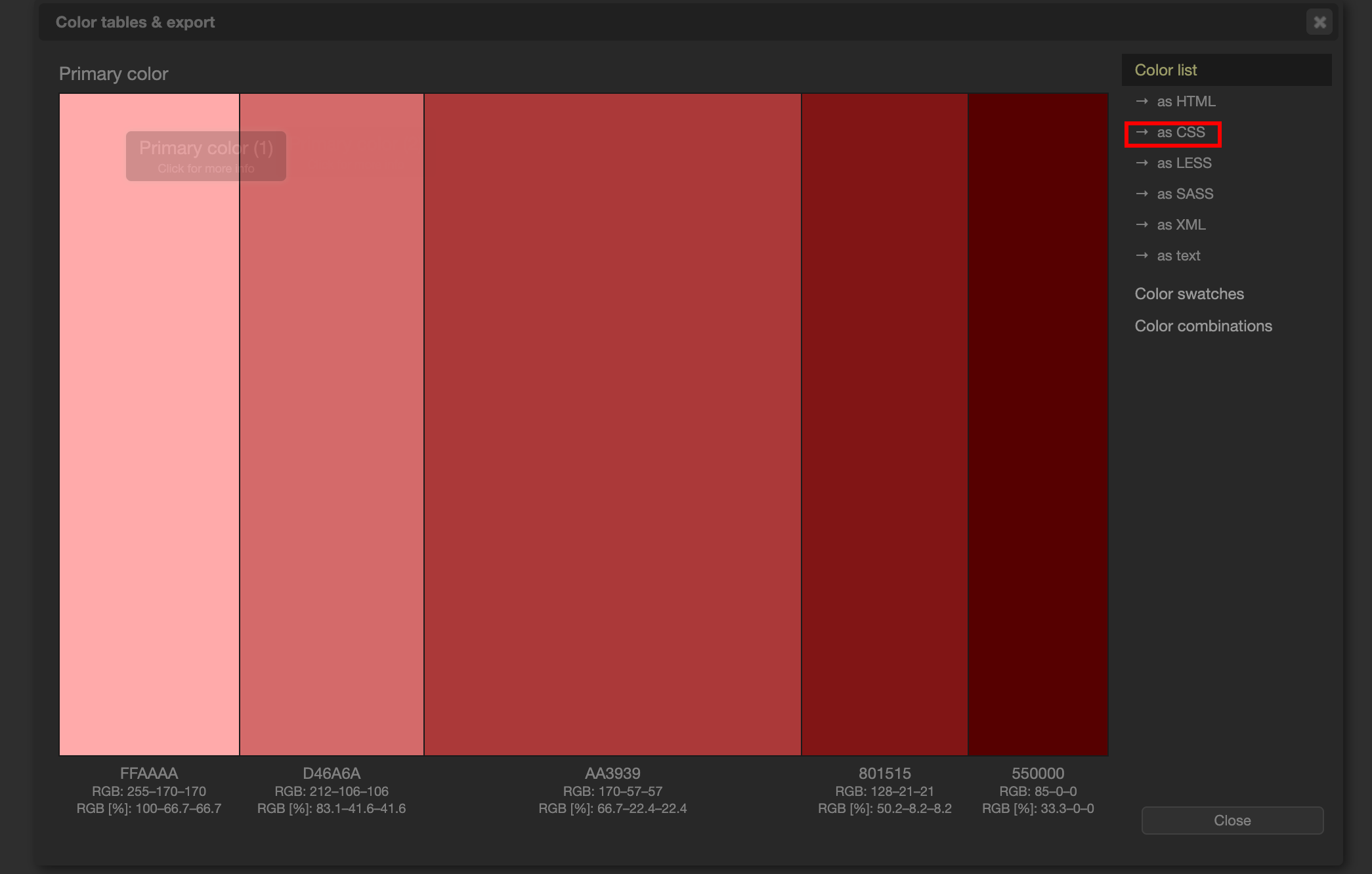

Then, go to the export and select as CSS: Don't worry if the export doesn't work as all the relevant colour information (Hex values) can be grabbed right off this page too! You should end up with something like this in your style.css file:

:root{
    --color-primary-0 :  #679933 ;
    --color-primary-1 :  #C0E699 ;
    --color-primary-2 :  #90BF60 ;
    --color-primary-3 :  #437313 ;
    --color-primary-4 :  #274D00 ;
    --color-white     :  #ffffff ;
    --color-black     :  #000000 ;
}
button {
    width:175px;
    height:100px;
    background-color: var(--color-primary-0);
    color: var(--color-white);
    font-size:25pt
}

Where the :root selector contains the variable namnes used for the colours - you don't have to do it exactly like this but it's done here for clarity

Thanks for reading! PW
